TYPES AND DIMENSIONS ACCORDING TO THE TABLES
|
Type |
Internal dimensions Lint x H int ( mm ) |
External dimensions Lext x Hext ( mm ) |
Thickness g ( mm ) |
|
|
Usa UME |
UME0 |
800 x 1800 |
1040 x 2040 |
25 |
|
UME1 |
800 x 1800 |
1040 x 2040 |
18 |
|
|
UME2 |
800 x 1800 |
1000 x 2000 |
14 |
|
|
UE |
800 x 1800 |
1000 x 2000 |
8 |
|
|
Usa PME |
PME2 1 canat |
1400 x 2100 |
1640 x 2340 |
8 |
|
Oblon OME |
OME0 |
700 x 700 |
900 x 900 |
16 |
|
OME1 |
700 x 700 |
900 x 900 |
10 |
|
|
OME2 |
700 x 700 |
900 x 900 |
8 |
|

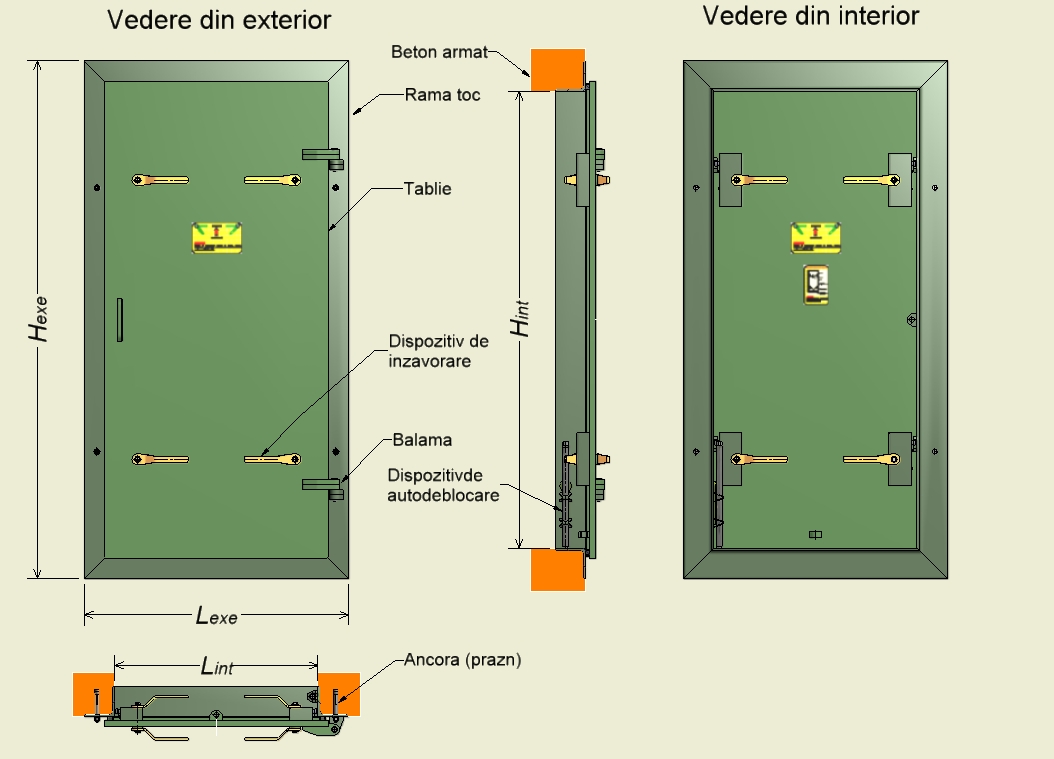

The products components are:
- frame of laminated steel corner welded
- body of steel sheet with the thickness according to the protection level needed
- 2 hinges
- 4 closing systems (for the doors) and 3 closing systems (for the shutters) to block door into the frame
- self – adhesive seal on the frame
